CNC Lathe
M06DY-II M08DY-II
Feature

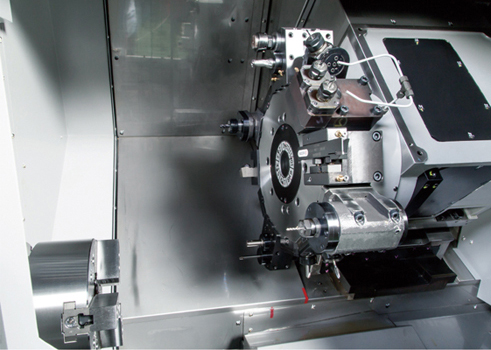

? Milling tools can be mounted on all the 12-station turret（Option）
?±50 mm long stroke, process aggregation by the turret with the Y-axis, milling and cutting in various way achievable
??Overwhelming cost performance
Feature
| Machine tool parameter | M06DY-II | M08DY-II |
| Max. machinable dia. | φ260/φ51(Bar work)mm | φ280/φ65(Bar work)mm |
| Main spindle speed | 200～4,500min-1 | |
| No. of turrt stations | 12-station turret | |
| Rapid traverse rate | X:24m/min Y:12m/min Z:27m/min | |
| Main spindle notor | 7.5/11kW | |
| Width×Depth×Height | 2,330×1,850×1,930mm | |
| Weight | 5,200kg | |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
