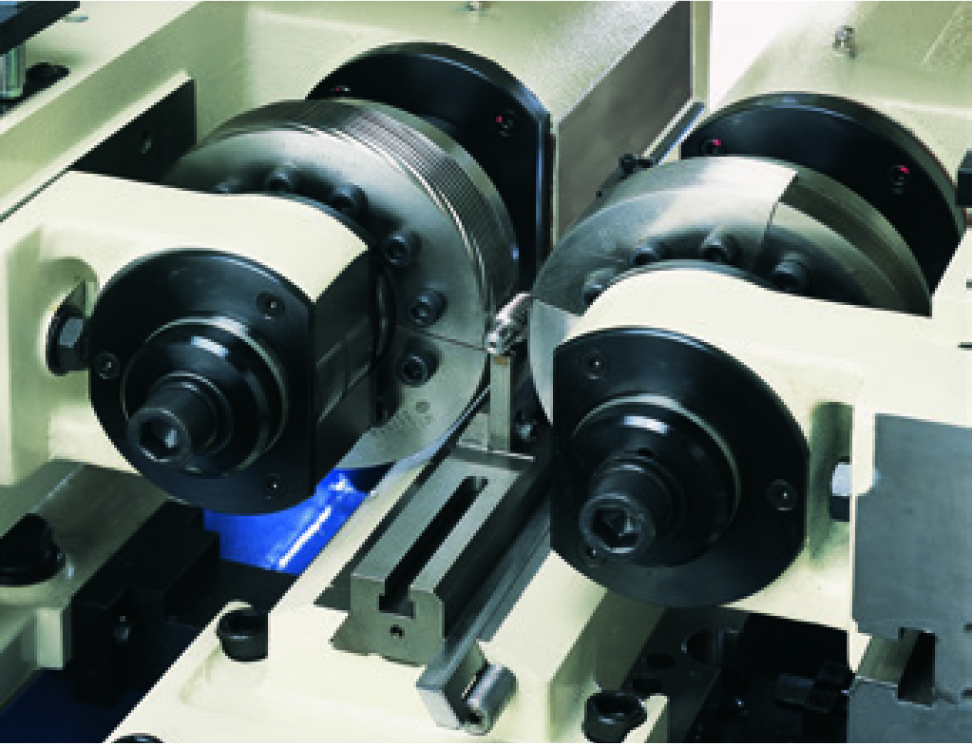

Precision Thread And Form Rolling Machine
R17NC-II
Feature
?? In addition to standard 3-axis option of 2-axis NC control unit construction realizes high accuracy and complex thread rolling by simple command.
?? The right headstock realizes stable movement with the high-rigidity linear guides and the large ball screw.
?? Pitch adjustment is easy by NC command.
?? Oil-less construction is gentle for environment, and achieves stable accuracy with less temperature change.
?
Feature
| Machine tool parameter | R17NC-II?(In-feed) | R17NC-II?(Through-feed) |
| Max. rolling O.D. | φ75mm | φ40mm |
| Max. rolling length | 150mm | 4,000mm |
| Max. speed | 95min-1? | |
| Max. rolling pressure | 17ton | |
| Spindle motor | 3.0kW×2 | |
| Width×Depth×Height | 1,986×1,370×1,838mm | |
| Weight | 3,200kg | |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
