Feature
? ?Though-feed or in-feed thread rolling machine for small components
? ? A fine adjustment of spindle inclination with a digital indicator?
?? Space saving (floor space:1.2m2)

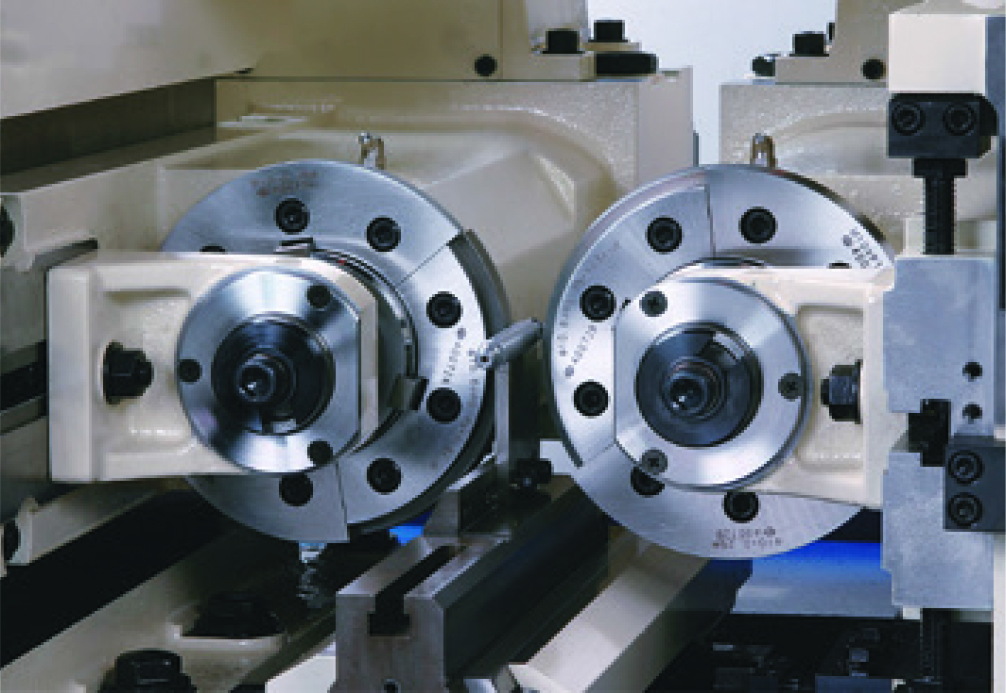

?? Both right and left spindles are driven by the independent servo motors respectively.
? ? ?High precision thread rolling by eliminating pitch error with rotation synchronization control.
?? Programmable pitch coinciding of rolling dies by inputting numerical values on the screen.
?? Data of machining conditions and offset values are stored in the NC as numerical data, and reproducing of conditions is easy.
?
| Machine tool parameter | R7NC (In-feed) | R7NC (Through-feed) |
| Max. rolling O.D. | φ45mm | φ10mm |
| Max. rolling length | 60mm | 1,500mm |
| Max. speed | 195min-1? | |
| Max. rolling pressure | 7ton | |
| Spindle motor | 2.5kW×2 | |
| Width×Depth×Height | 1,245×940×1,770mm | |
| Weight | 1,500kg | |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
