Feature
? Realizes high-performance milling at overwhelming cost performance.
? Ideal machine for wide variety products in small quantities of complicated shape parts.
? By process integration, reduces the number of operators and machines, and shortens the lead time.
? The interference prevention function is installed to prevent interference between the tool spindle and the back spindle.
? With 60-tool magazine, it is possible to machine complicated workpieces, which is difficult to perform with the turret-type NC lathe.
? 11kW high power built-in motor which realize efficiency milling from low speed to the maximum spindle speed of 20,000min-1 is provided as standard.
| Machine tool parameter | TMA8J |
| Chuck size of main work spindle? | 8 inch |

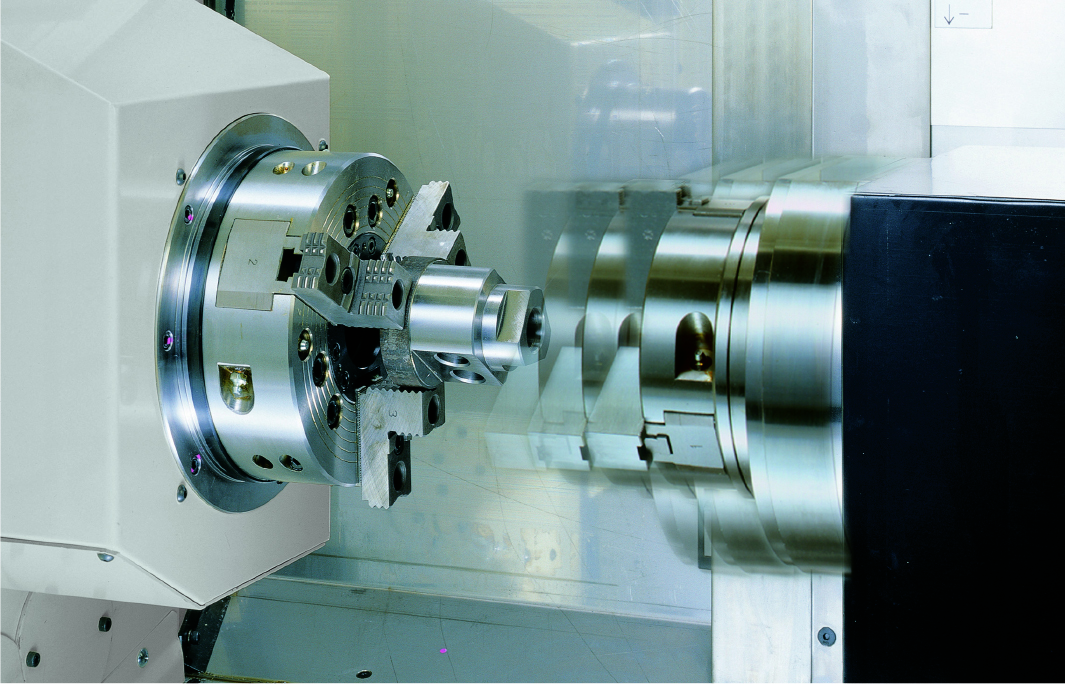

| Chuck size of back work spindle | 6 inch |
| Main work spindle speed | 5,000min-1 |
| Back work spindle speed | 5,000min-1 |
| Tool spindle speed | 20,000min-1 |
| B-axis index angle/least | -15°~195°/0.001° |
| Tool storage capacity |
60 |
| Width×Depth×Height | 3,550×2,126×2,100mm |
| Weight | 8,500kg |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
