Feature
?
swiveling-type wheel head for process integration and high?accuracy?machining.
?
?Automatic swiveling-type wheel head?with rich selectivity.

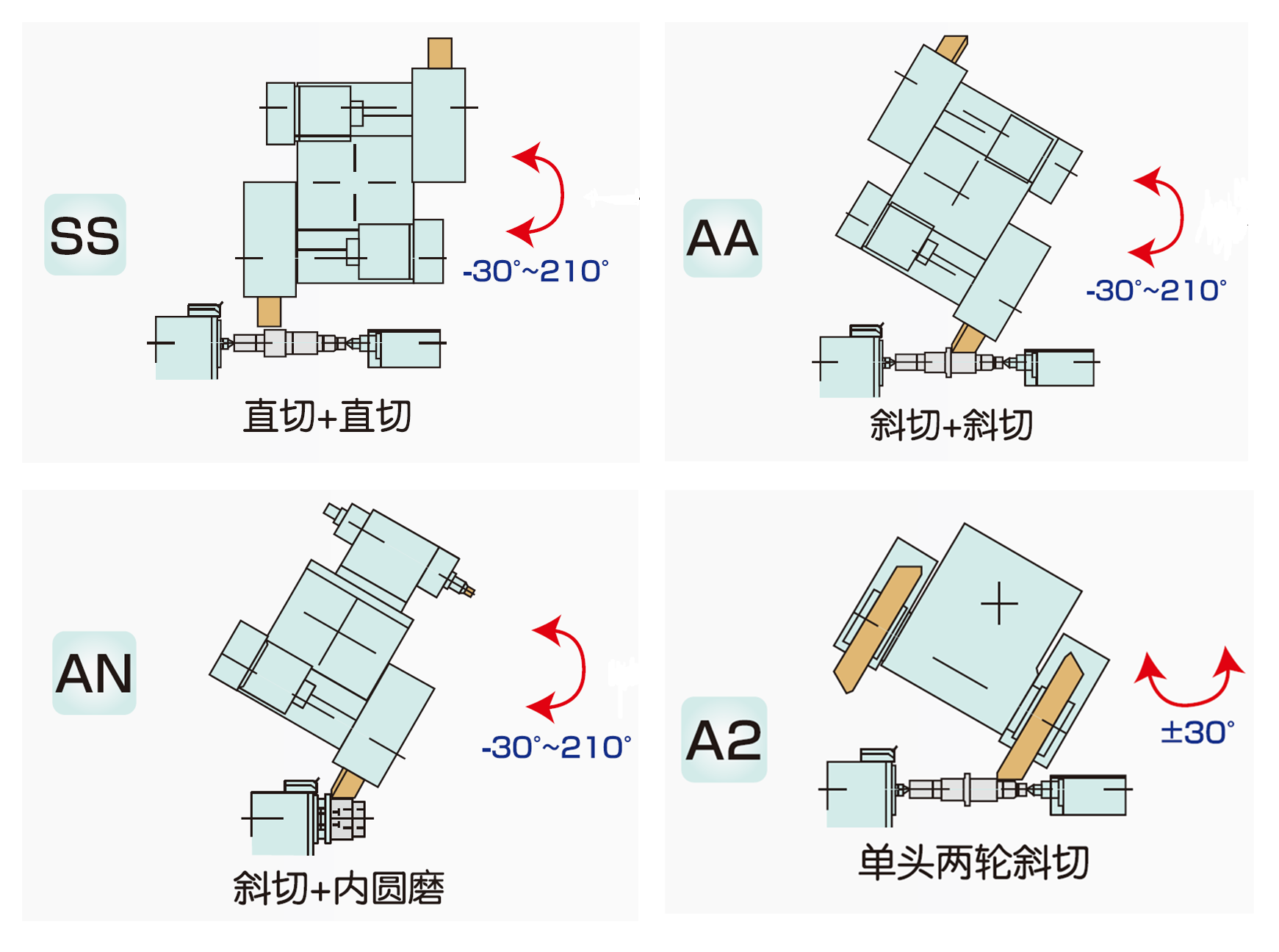

Straight?+ Straight grinding / Angular?+Angular grinding /?Angular + Internal grinding /?1-head and 2-wheel specification
| Machine tool parameter | G300W-500SS | G300W-500AA | G300W-500AN | G300W-500A2 |
|
Head specification |
Straight + Straight grinding |
Straight + Straight grinding |
Angular + Internal grinding |
Angular + Internal grinding |
|
Distance between centers |
500mm | |||
| Rotating diameter | φ300mm | |||
|
Grinding wheel OD x Max. width |
φ455m×φ75mm×φ127mm（2） | φ455m×φ75mm×φ127mm（1）+
Internal grinding spindle |
φ455m×φ75mm×φ127mm（2） | |
|
Wheel surface speed |
2,700m/min | |||
|
Rapid traverse rate |
16m/min | 16m/min，B axis（Automatic swiveling-type wheel axis）：5,400°/min | 16m/min | |
|
Headstock standard type |
Dead/live changeover type | |||
|
Taper size of headstock |
MT? No.4 | |||
|
Tailstock quill stroke |
200mm（Amount of manual center-distance adjustment）、40mm（Hydraulic） |
Option |
200mm（Amount of manual center-distance adjustment）、40mm（Hydraulic） | |
|
Taper size of tailstock |
MT? No.4 | |||
|
Wheel spindle motor |
5.5kW | Cylindrical grinding：5.5kW
Internal grinding：Option |
7.5kW | |
|
Headstock spindle motor |
1.6kW | |||
|
WidthxDepthxHeight |
2,520×3,740×2,090mm | |||
|
Weight |
5,200kg | |||
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
