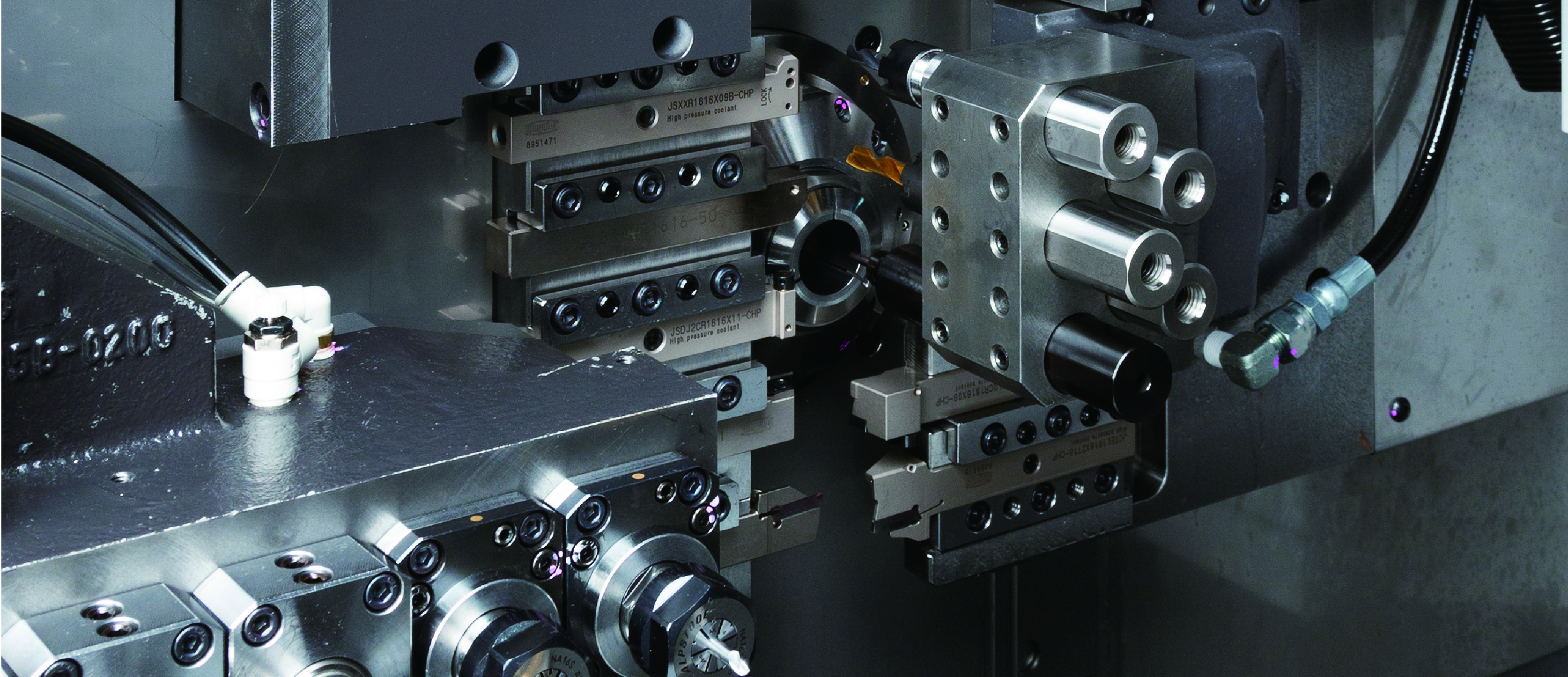

CNC Precision Automatic Lathe
BW269ZJ BW329ZJ
Feature
?Realizing a variety of simultaneous machining with simultaneously controlled 3-path and independent tool posts.
?3-path control realizes zero tool change time
?Abundant live tool choices realizes efficiently process of complex-shaped workpieces
?Modular type live tools can be freely configured according to the needs of the workpiece
?According to the workpiece, guide bushing type or guide bushing-less type is selectable.
Feature
| Machine tool parameter | BW269ZJ | BW329ZJ |
| Max. machinable dia. | φ26 | φ32 |
| Maind spindle speed | 200-10,000min-1 | 200-8,000min-1 |
| Back spindle speed | 200-10,000min-1 | 200-8,000min-1 |
| Total number of tools | 29PCS | |
| Rapid traverse rate | 35m/min(Z1·X2·Z2)??24m/min(Y1·Y2·Y3)??12m/min(X1·X3·Z3) | |
| Main spindle motor | 3.7/5.5kW | |
| Width×Depth×Height | 2,655×1,640×2,000mm | |
| Weight | 5,300kg | |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
