Feature

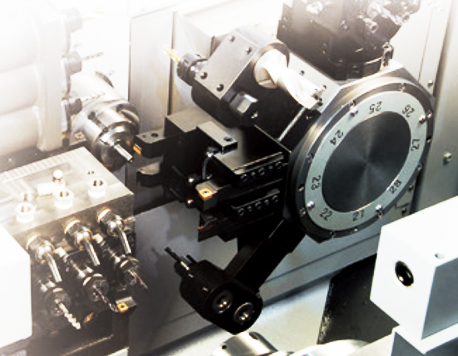

? 8-station turret mounting plural tools on one station, and achieving the quick tool change with Y-axis without turret indexing
? Back tool post equipping Y axis, milling with Y-axis can be performed by equipping live tools. Front milling with the tools on turret and back milling with the tools on back tool post can be simultaneously performed.
? 3 path control reduces the cycle time dramatically
? TSUGAMI's unique highly rigidity ?" Double Spindle" enables heavy-duty machining
? Abundant tooling options facilitate the machining of complex-shaped workpieces
| Machine tool parameter | B038T |
| Max. machinable dia. | φ38mm |
| Main spindle speed | 200～5,000min-1 |
| back spindle speed | 200～7,000min-1 |
| Total number of tools | ?45pcs: 8-station turret |
| Rapid traverse rate | X1，X2，X3，Y1，Y2，Y3，Z1，Z2，Z3 axis：24m/min |
| Main spindle motor | 7.5/11kW |
| Width×Depth×Height | 3,427×1,875×1,790mm |
| Weight | 6,200kg |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
