CNC Precision Automatic Lathe
B0385C B0386C
Feature
? Not required large diameter ground bar stocks
? Shortening remnant, and reducing material cost

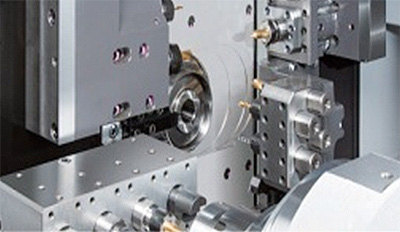

? Inserted rear?tooling post· back tooling post （option）, install freely according to the work piece requirement and machining off-center with accessories
? Stable gripping force thanks to the drawback type collet chuck
? Full loaded standardized software which is easy to operate
Feature
| Machine tool parameter | B0385C | B0386C |
| Max. machinable dia. | φ38mm | |
| Main speed speed | 200～4,500min-1 | |
| Bakc spindle speed | 200～7,000min-1 | |
| Total number of tools | 28/35PCS | 32/39PCS |
| Main spindle motor | 3.7/5.5kW | |
| Back spindle motor | 2.2/3.7kW | |
| Width×Depth×Height | 2,720×1,280×1,930mm | |
| Weight | 3,800kg | 3,800kg |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
