CNC Precision Automatic Lathe
B0128W B0208W
Feature
? ? By simultaneous?3-path 8-axis control on independent tool posts, diverse processing is possible with high productivity

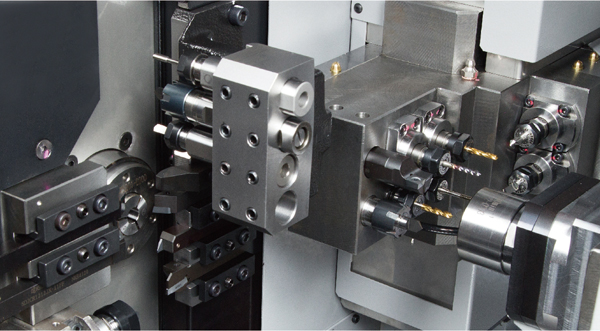

? ? Two rows of tools sitting face to face, front and back are independently driven of B0 series
? ??Very good cost performance
Feature
| Machine tool parameter | B0128W | B0208W |
| Max. machinable dia. | φ12mm | φ20mm |
| Main spindle speed | 200～12,000min-1 | 200～10,000min-1 |
| Back spindle speed | 200～12,000min-1 | |
| Total number of tools | 25PCS | |
| Rapid traverse speed | 32m/min(X1·X3:12m/min、Y1·Y3:24m/min、Y2:15m/min) | |
| Main spindle motor | 1.5/2.2kW | 2.2/3.7kW |
| Width×Depth×Height | 1,655×1,205×1,700mm | |
| Weight | 2,150kg | |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
