Feature
?
Front and back overlapped machining is possible with the back tool post.

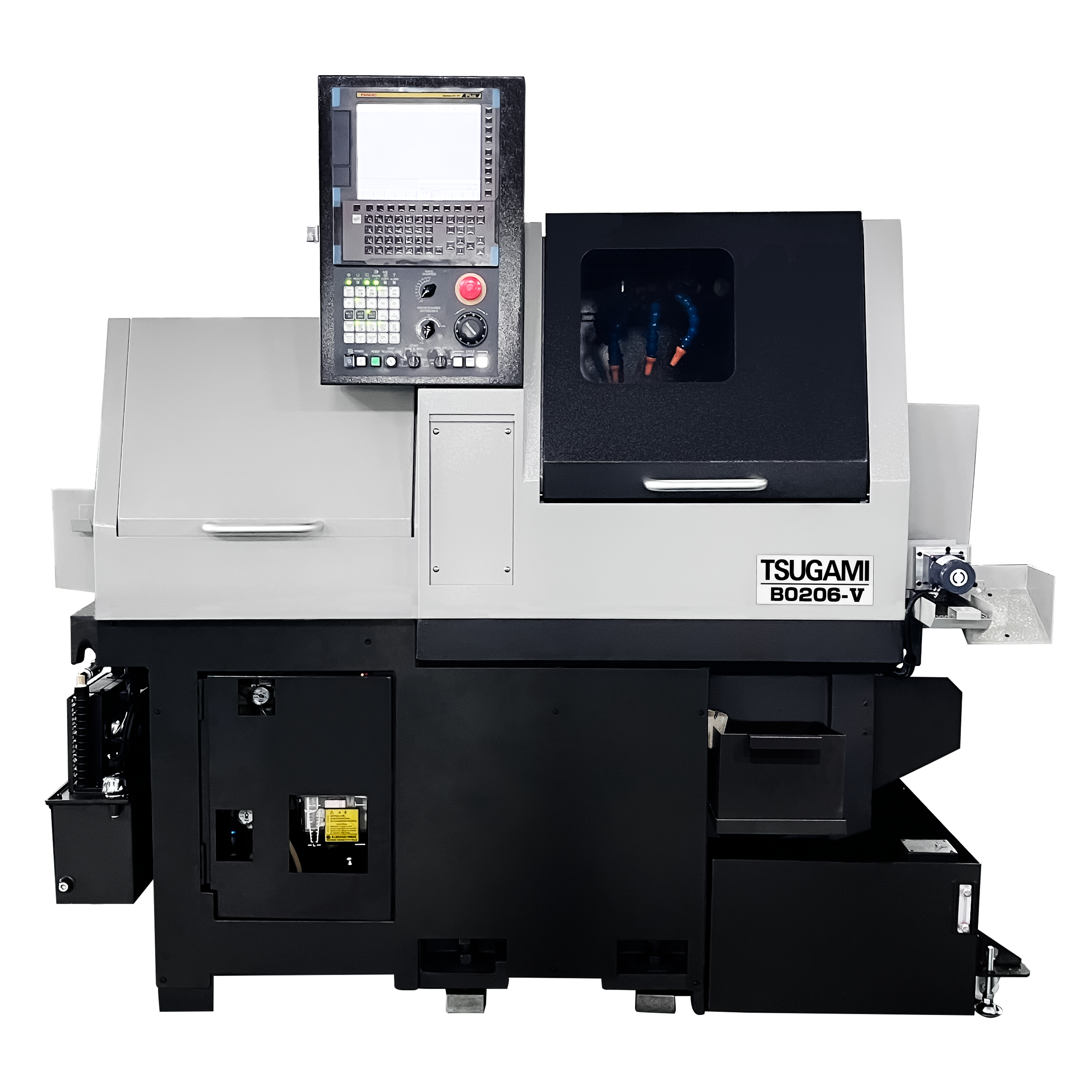

Compact machine with back tool post with Y axis.Improves back machining capability.(B0126-V/B0206-V)
?
? Enhances machining capabilities by high output built-in motor equipped on the main and back spindle.
? Maximum of 6 live tools can be mounted on the back tool post, and it can flexibly handle a variety of back machining needs.(B0126-V/B0206-V)
? Reduces cycle time.
? ? Fixed type chute reduces the work collection time to one second.
? ? Optimizes the slide movement and live tools start-up operation to reduce the idle time.
? Live tool of front tool post (option) with max. speed of 10,000min-1 reduces the cycle time for small hole drilling.
? Guide-bushing type or guide-bushless type is selectable according to the workpiece. (Option)
| Machine tool parameter |
B0125-V |
B0126-V |
B0205-V |
B0206-V |
|
Max. machining dia.? |
φ12mm |
φ20mm |
||
|
Main spindle speed |
Max.12,000min-1 |
Max.10,000min-1 |
||
|
Back spindle speed |
Max.12,000min-1（Rated speed：8,000min-1） |
|||
|
Lool storage capacity |
21PCS |
27PCS |
21PCS |
27PCS |
|
Rapid traverse rate |
36m/min（X2,Z2） ?32m/min（Y1,Z1) ?24m/min（X1） |
|||
|
Main spindle motor |
2.2/3.7kW |
3.7/5.5kW |
||
|
Back spindle motor |
2.2/3.7kW |
|||
|
WidthxDepthxHeight |
1,750×1,055×1,700mm |
|||
|
Weight |
1,800kg |
1,850kg |
1,800kg |
1,850kg |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
